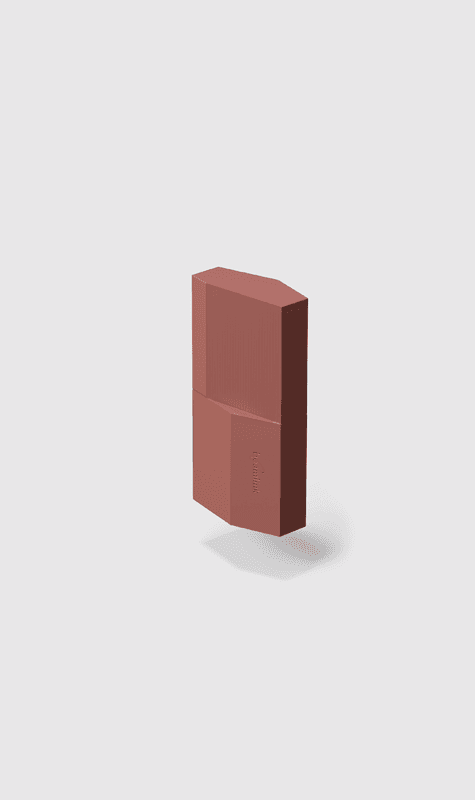

NOT JUST ANY CELL TOWER
Meet the Bentocell
NOT JUST ANY CELL TOWER
Meet the Bentocell
NOT JUST ANY CELL TOWER
Meet the Bentocell
NOT JUST ANY CELL TOWER
Meet the Bentocell

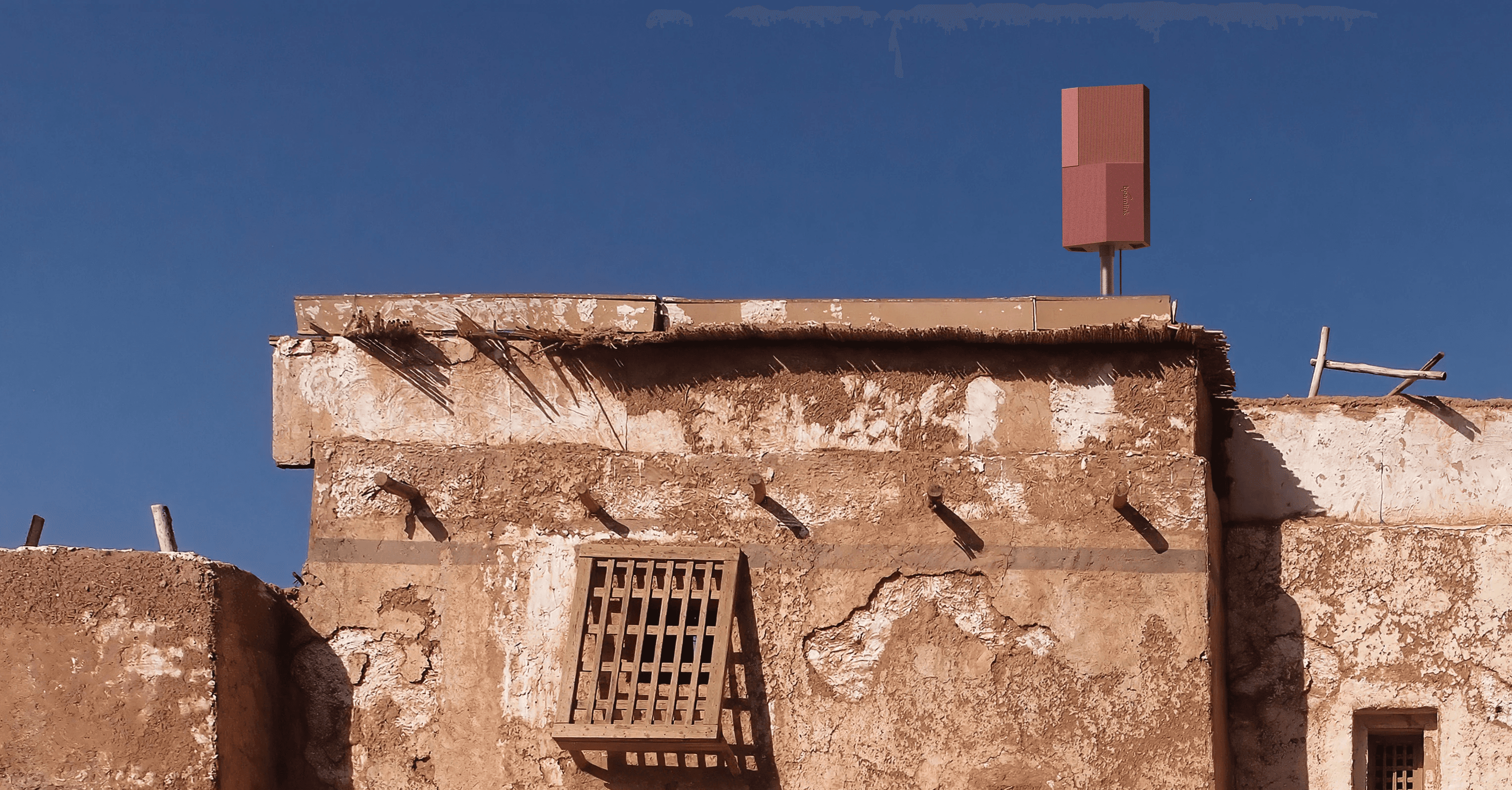

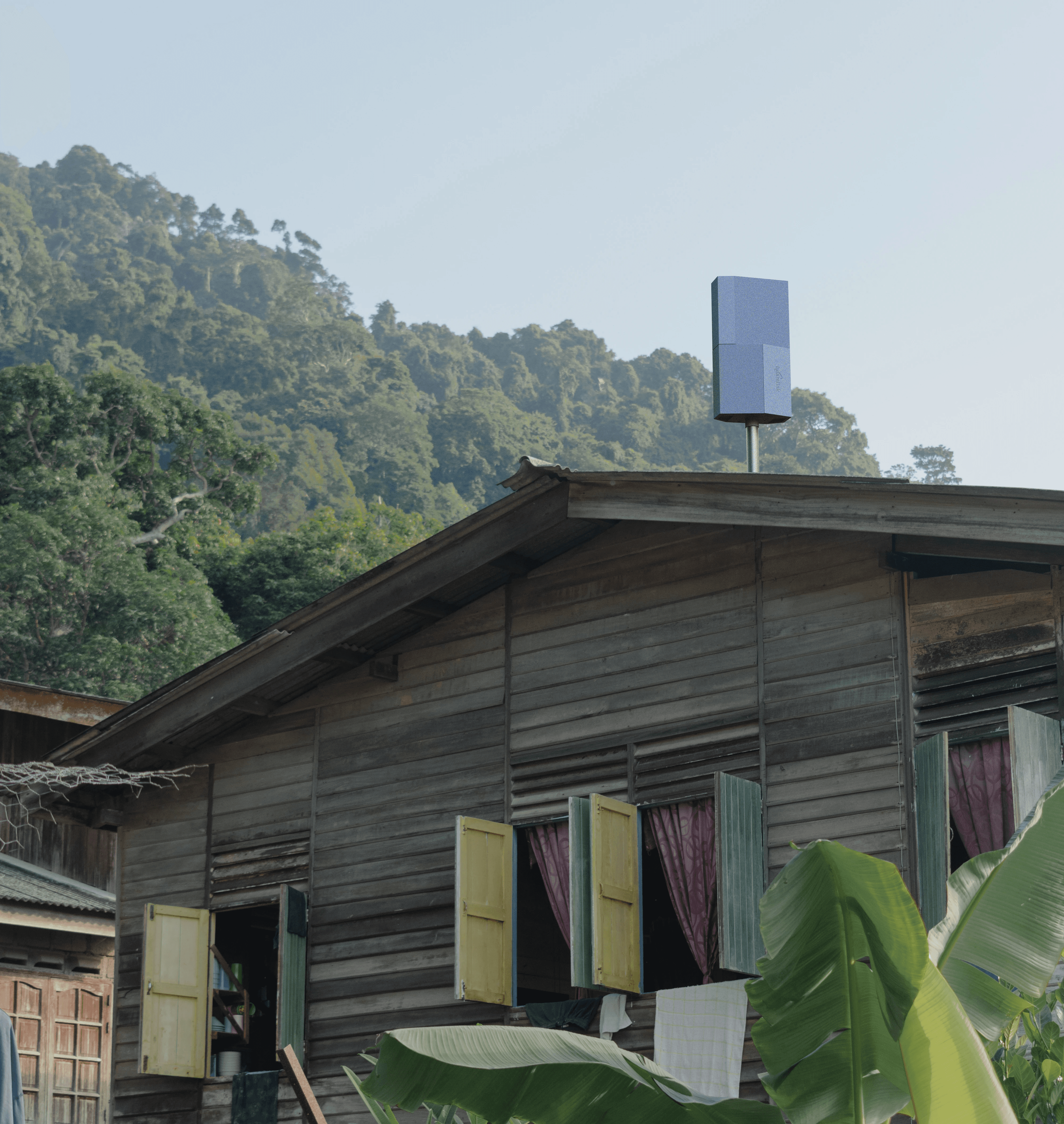

An entire cell site
An entire cell site
An entire cell site
An entire cell site
Bentocells have all waveform generation, amplification,and antennae built in. They operate completely independent of other equipment, creating an entire cell site.
Bentocells have all waveform generation, amplification,and antennae built in. They operate completely independent of other equipment, creating an entire cell site.
Simpler than a button
Simpler than a button
Simpler than a button
Simpler than a button
Bentocells can be set up in minutes, and require little to no planning. There used to be a power button, but we decided even that was unnecessary. Now you literally just plug it in.
Bentocells can be set up in minutes, and require little to no planning. There used to be a power button, but we decided even that was unnecessary. Now you literally just plug it in.
No need for accessories
No need for accessories
No need for accessories
No need for accessories
Unlike traditional cellular equipment, the Bentocell has all amplification and antennae built in. But don't worry, they can use beamforming to intelligently adjust their coverage area.
Unlike traditional cellular equipment, the Bentocell has all amplification and antennae built in. But don't worry, they can use beamforming to intelligently adjust their coverage area.
SETUP
It really is that simple
SETUP
It really is that simple
SETUP
It really is that simple
SETUP
It really is that simple

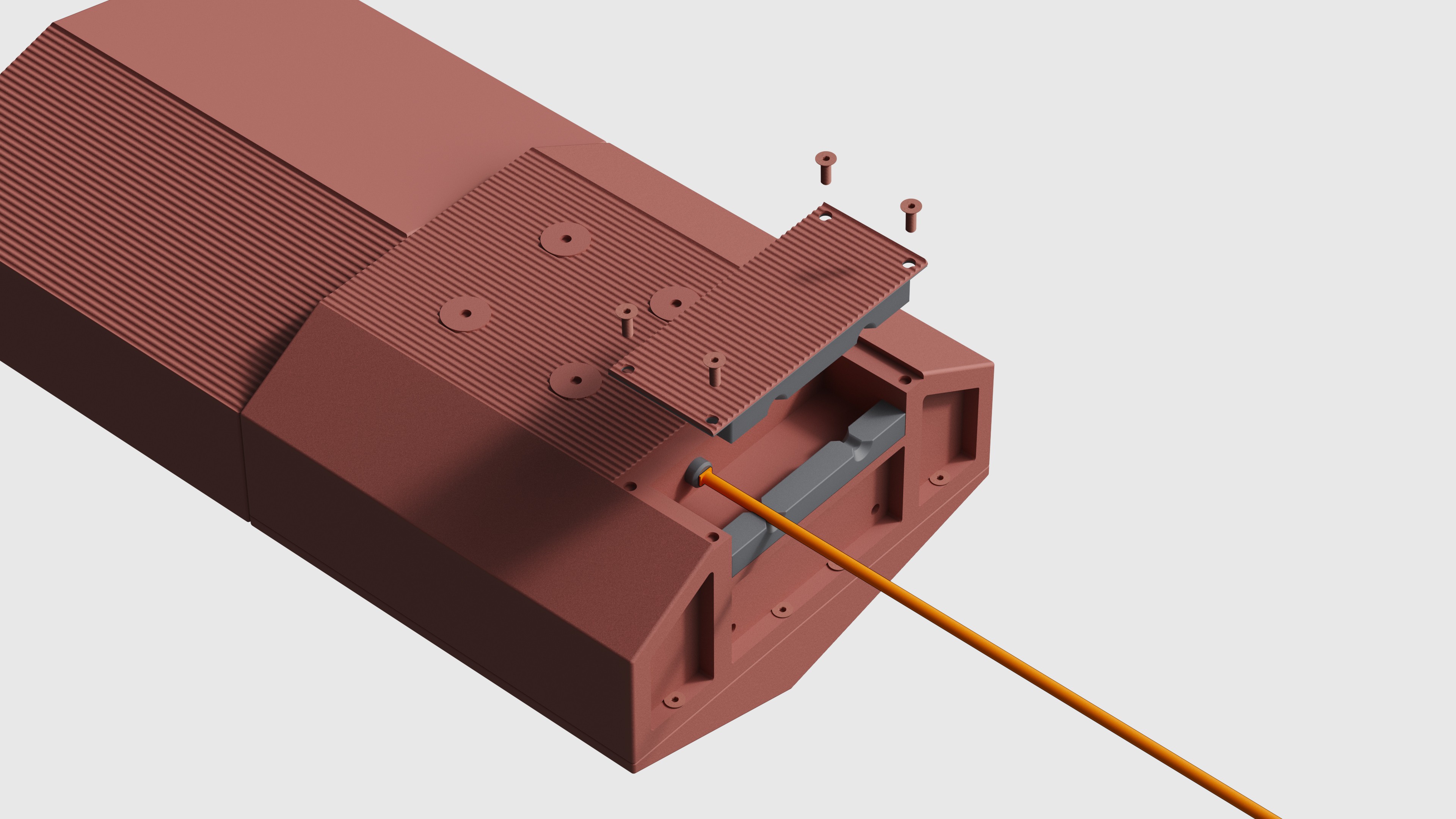

Plug in PoE

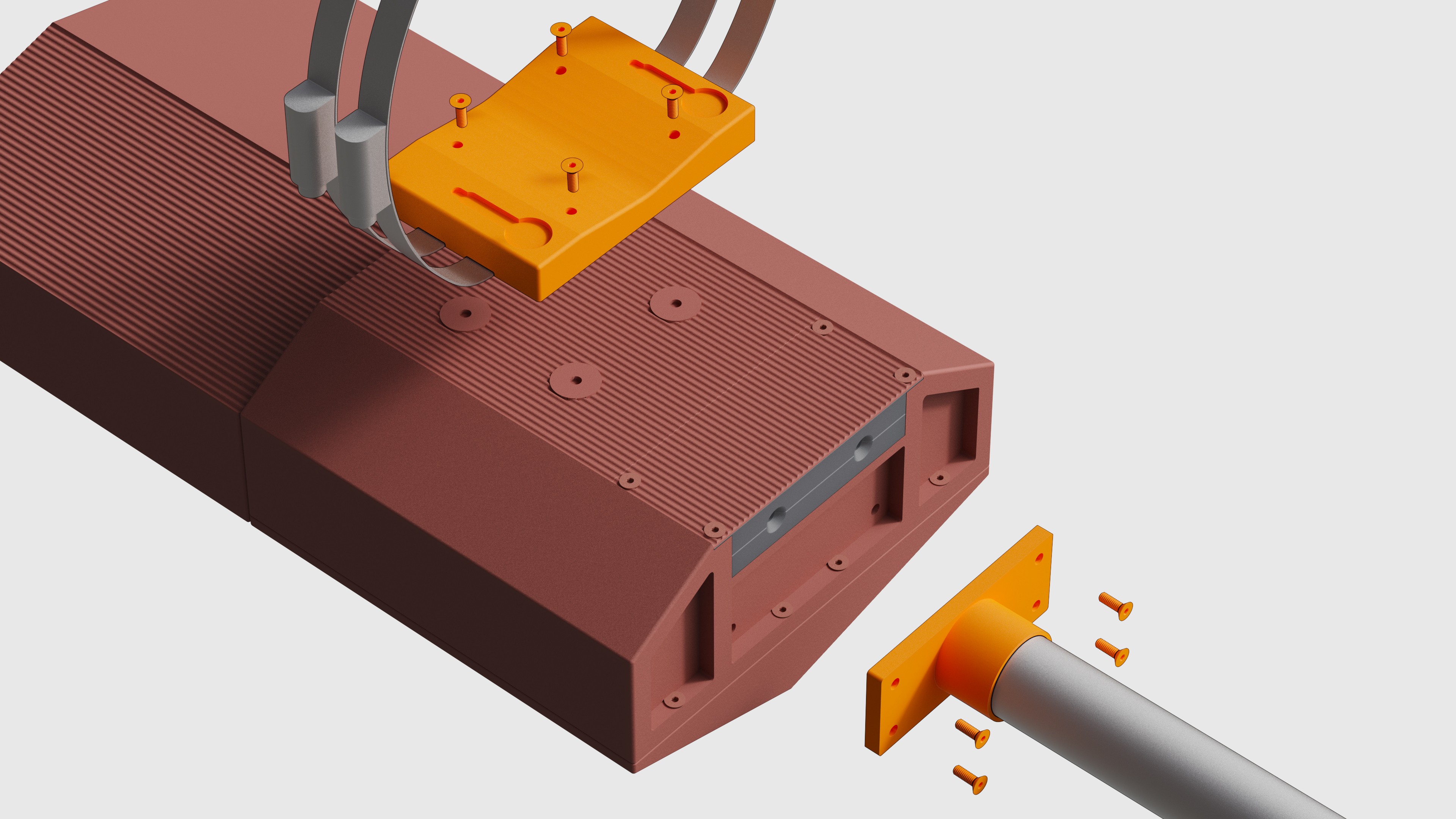

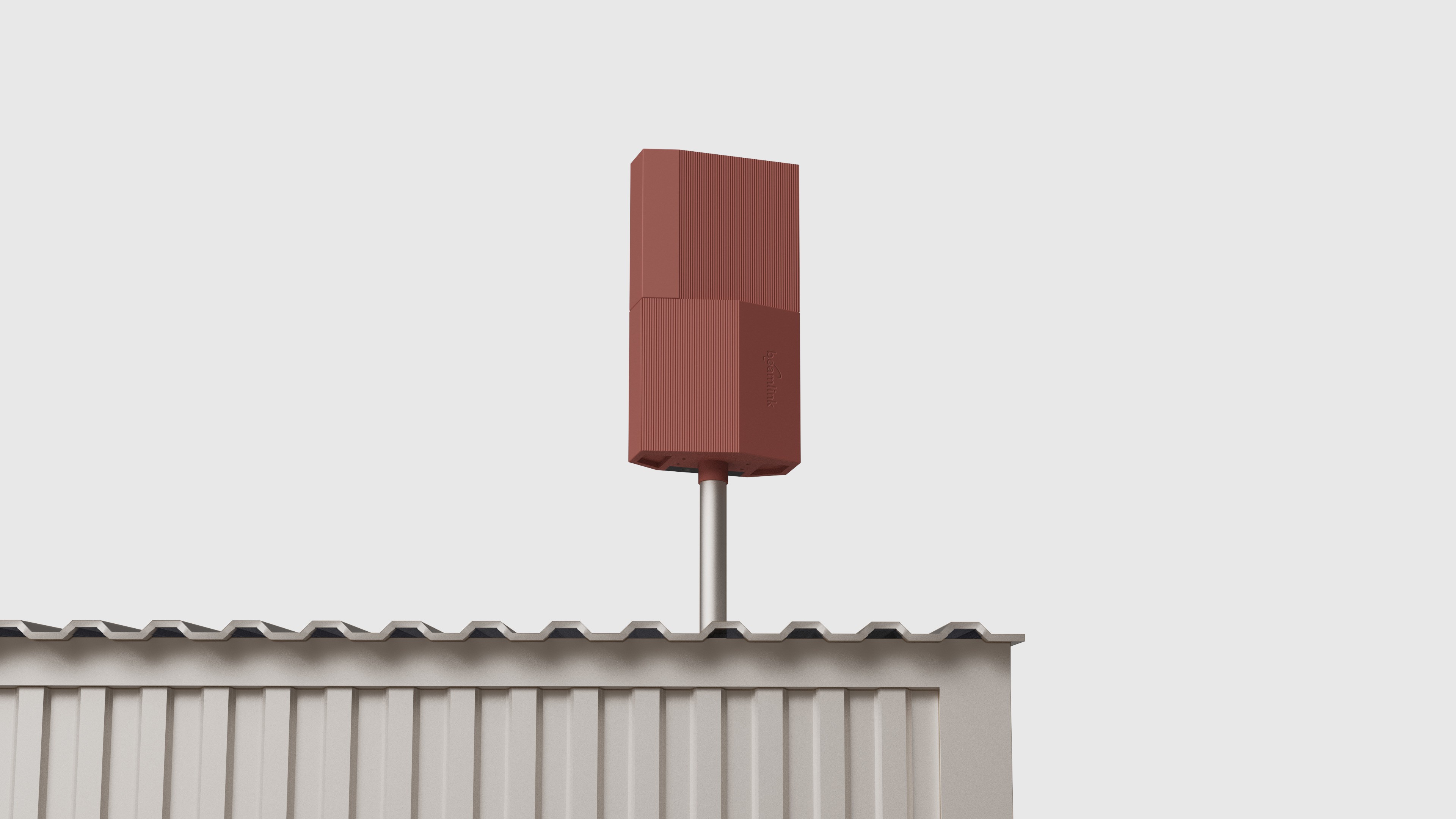

Pick your mounting
Provide cell service
RADIO
Any band, any protocol
RADIO
Any band, any protocol
RADIO
Any band, any protocol
RADIO
Any band, any protocol
BANDS
600 MHz to 4 GHz
Already in use for bands 3, 7, 8
PROTOCOLS
4G-LTE (3GPP R17), 5G-NR (3GPP R18) coming 2025
CONNECTIONS
Up to 1,000 simultaneous
Up to 128 active
BANDS
600 MHz to 4 GHz
Already in use for bands 3, 7, 8
PROTOCOLS
4G-LTE (3GPP R17)
5G-NR (3GPP R18) coming 2025
CONNECTIONS
Up to 1,000 simultaneous
Up to 128 active
BANDS
600 MHz to 4 GHz
Already in use for bands 3, 7, 8
PROTOCOLS
4G-LTE (3GPP R17), 5G-NR (3GPP R18) coming 2025
CONNECTIONS
Up to 1,000 simultaneous
Up to 128 active
BANDS
600 MHz to 4 GHz
Already in use for bands 3, 7, 8
PROTOCOLS
4G-LTE (3GPP R17)
5G-NR (3GPP R18) coming 2025
CONNECTIONS
Up to 1,000 simultaneous
Up to 128 active
And capable of way more
And capable of way more
And capable of way more
And capable of way more
Want support and testing for band 5? Want a different 5G-NR release supported? Let us know! Because the Bentocell is designed with adaptability in mind, support for different bands or protocols can be added with a software update, and in most cases, can be pushed out to Bentocells in the field
Want support and testing for band 5? Want a different 5G-NR release supported? Let us know! Because the Bentocell is designed with adaptability in mind, support for different bands or protocols can be added with a software update, and in most cases, can be pushed out to Bentocells in the field
ANTENNAE
Sectors are out, omni is in
ANTENNAE
Sectors are out, omni is in
ANTENNAE
Sectors are out, omni is in
ANTENNAE
Sectors are out, omni is in

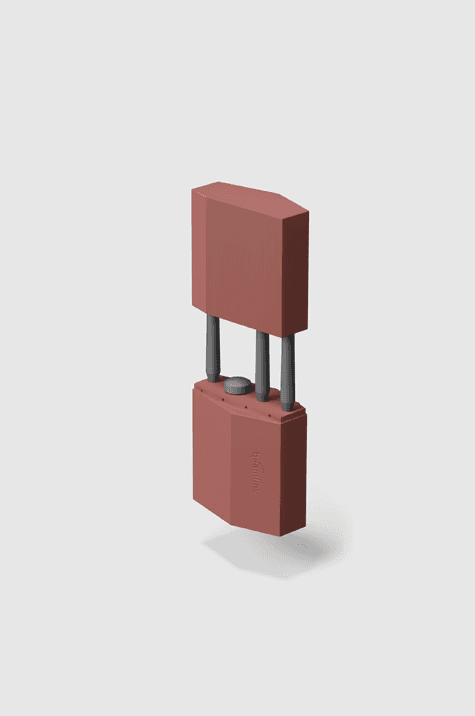

Why built-in antennae?
Why built-in antennae?
Why built-in antennae?
Why built-in antennae?
Choosing antennae is complicated, annoying, and frankly a waste of your time. Sure, in the past, you needed to chose the right antennae since the rest of the equipment wasn't smart enough to make adjustments, but around the second prototype for the Bentocell, we quickly realized the range benefits of selecting antennae aren't nearly worth it for the cost savings of just adding another Bentocell with built-in antennae.
Choosing antennae is complicated, annoying, and frankly a waste of your time. Sure, in the past, you needed to chose the right antennae since the rest of the equipment wasn't smart enough to make adjustments, but around the second prototype for the Bentocell, we quickly realized the range benefits of selecting antennae aren't nearly worth it for the cost savings of just adding another Bentocell with built-in antennae.
And why omni?
And why omni?
And why omni?
And why omni?
Because it's easy. Rather than you having to position antennae perfectly and spec out more equipment, Bentocells can leverage our intelligent beamforming to adjust the shape of their coverage area as needed. Think omni hardware, but sectored coverage.
Because it's easy. Rather than you having to position antennae perfectly and spec out more equipment, Bentocells can leverage our intelligent beamforming to adjust the shape of their coverage area as needed. Think omni hardware, but sectored coverage.
POWER
It's almost optional
POWER
It's almost optional
POWER
It's almost optional
POWER
It's almost optional
DRAW
21W / 38W
(Avg/Peak)
DELIVERY
PoE Type 3 (802.11bt, 60W)
Sources
Bentocells are regularly run off solar or other weaker power sources. If you can charge your phone, you can probably power a Bentocell.
DRAW (AVG/PEAK)
21W / 38W
DELIVERY
PoE Type 3
(802.11bt, 60W)
Sources
Bentocells are regularly run off solar or other weaker power sources. If you can charge your phone, you can probably power a Bentocell.
DRAW
21W / 38W
(Avg/Peak)
DELIVERY
PoE Type 3
(802.11bt, 60W)
Sources
Bentocells are regularly run off solar or other weaker power sources. If you can charge your phone, you can probably power a Bentocell.
DRAW (AVG/PEAK)
21W / 38W
DELIVERY
PoE Type 3
(802.11bt, 60W)
Sources
Bentocells are regularly run off solar or other weaker power sources. If you can charge your phone, you can probably power a Bentocell.

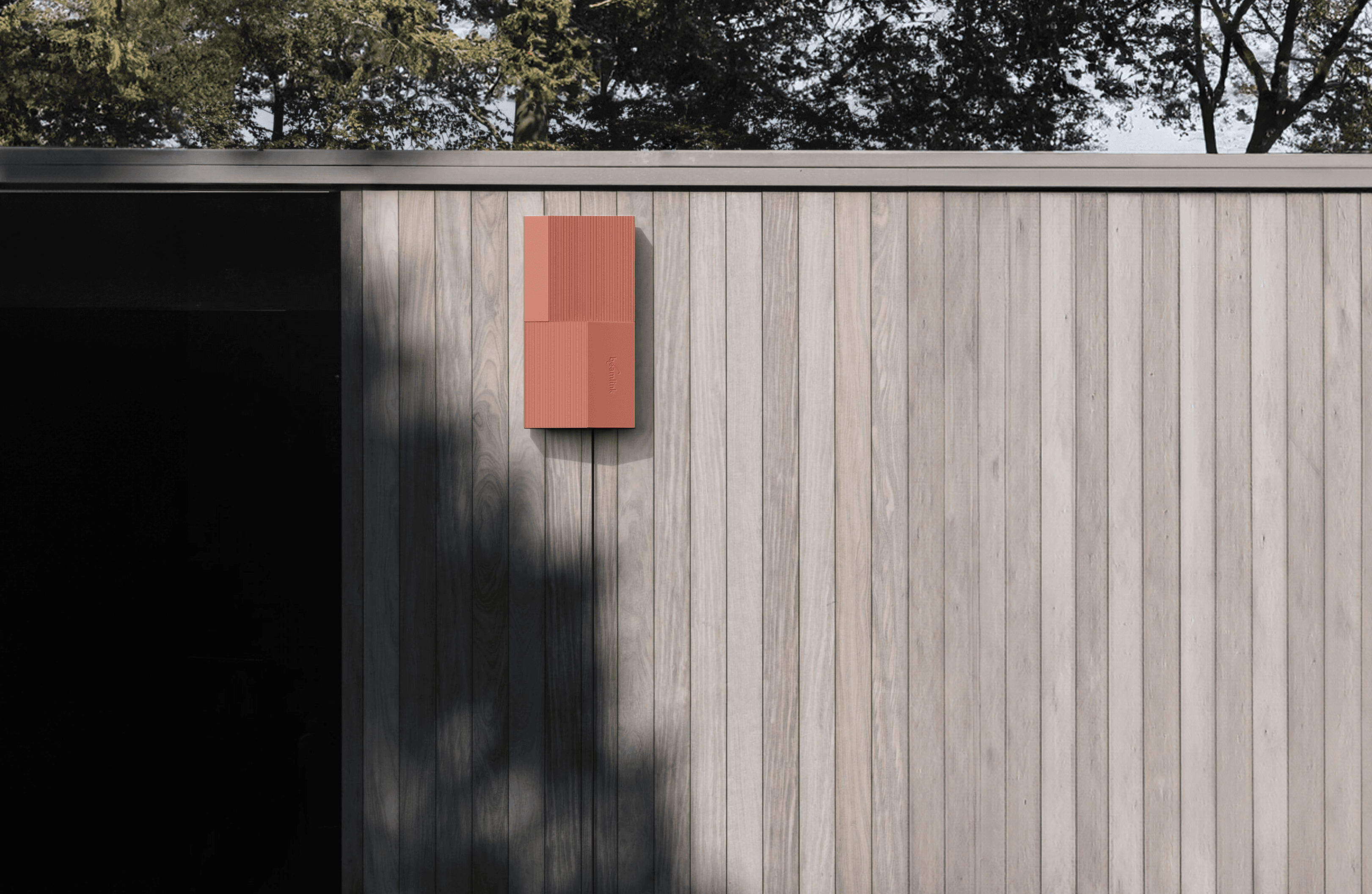

THE REST
They're beautiful too
THE REST
They're beautiful too
THE REST
They're beautiful too
THE REST
They're beautiful too

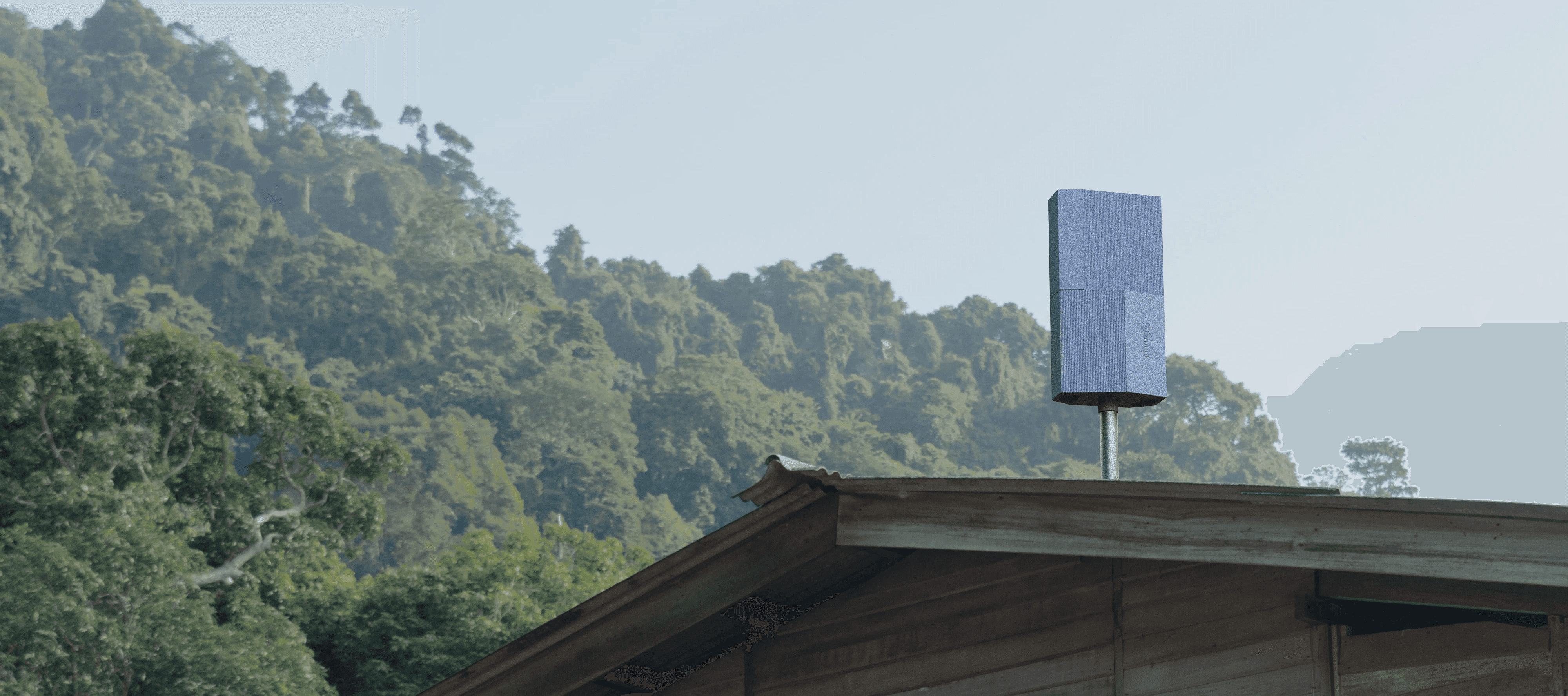

Worried about durability?
Worried about durability?
Worried about durability?
Worried about durability?
If you know our story, then you know we originally started building these for natural disasters. We can't promise they'll survive a hurricane, but they are rated IP-67 and function normally in air temps between -40°C to 45°C (ie everywhere on Earth)
If you know our story, then you know we originally started building these for natural disasters. We can't promise they'll survive a hurricane, but they are rated IP-67 and function normally in air temps between -40°C to 45°C (ie everywhere on Earth)
Backhaul
Backhaul
Backhaul
Backhaul
The short answer is they work with everything. Our customers currently have Bentocells deployed over fiber and Starlink, however we've tested them with an extensive range of satellite providers, microwave and FWA, and wired sources. We recommend low latency sources, however high latency options like Starlink can work.
The short answer is they work with everything. Our customers currently have Bentocells deployed over fiber and Starlink, however we've tested them with an extensive range of satellite providers, microwave and FWA, and wired sources. We recommend low latency sources, however high latency options like Starlink can work.
